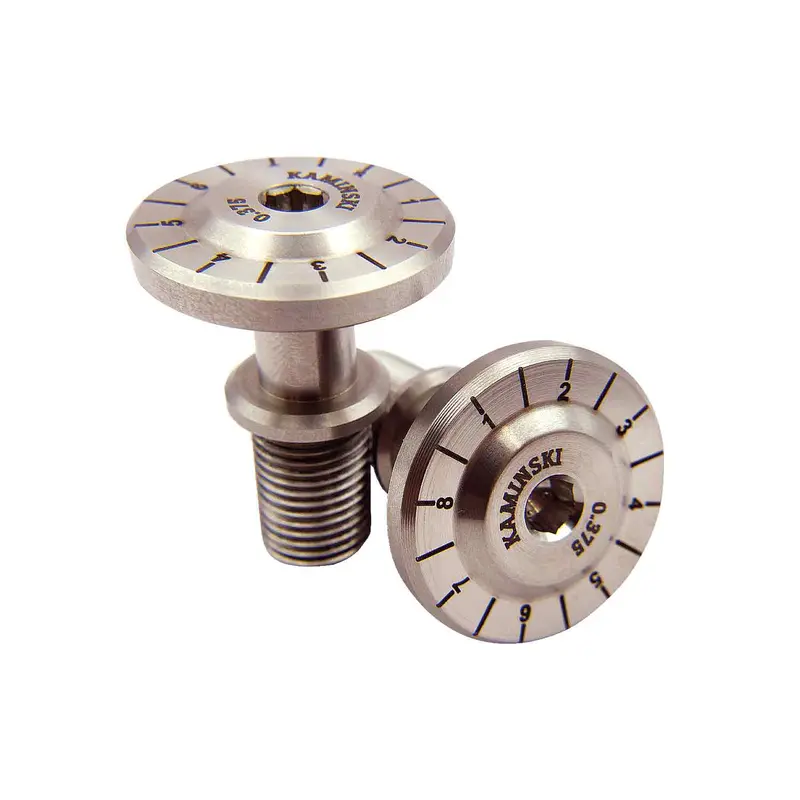

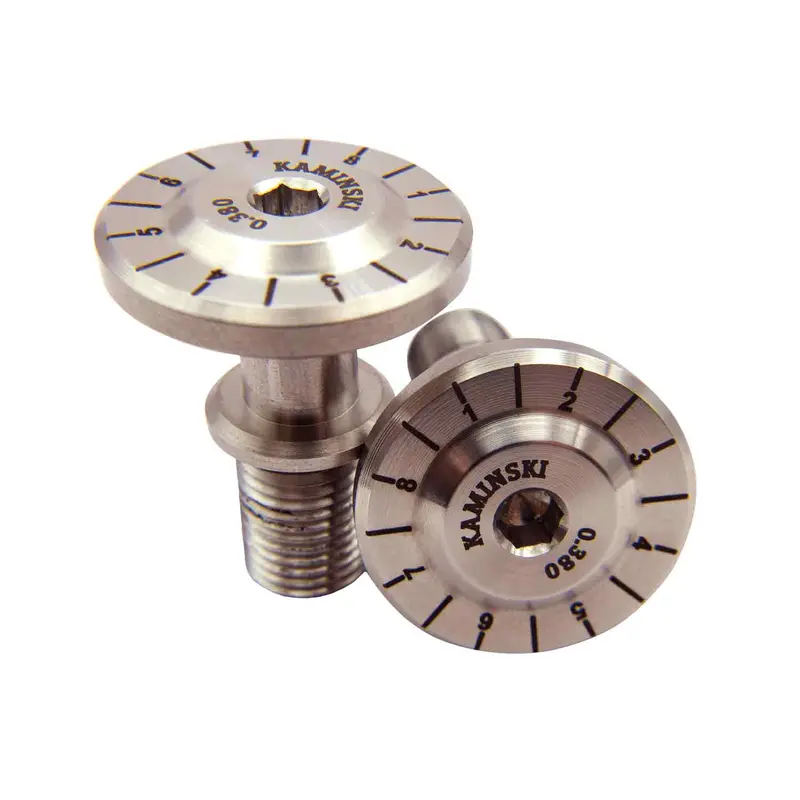

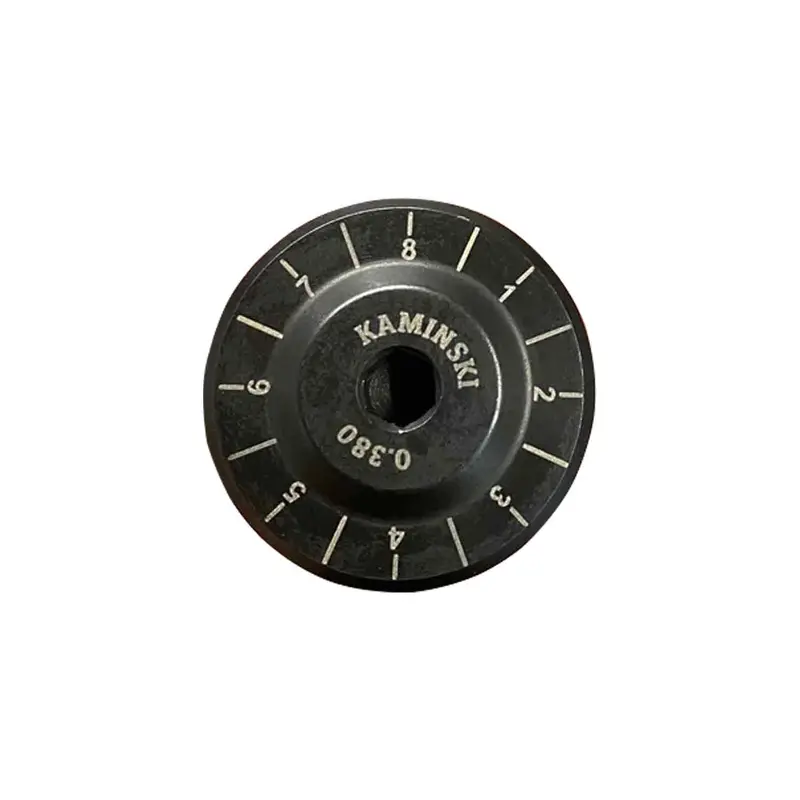

Kaminski Precision Tiller Bolts For Compound Bow Tuning

Description

Upgrade your riser from factory components and install the Kaminski Precision Tiller Bolts. Make bow tuning easier by using the tightest tolerances in the limb-to-tiller bolt interface. Get results with the most consistent limb alignment and shoot tighter groups downrange.

Specifications:

• Precision Machined to .001″
• .375″ model bolts measure between .374-.375″
• .380″ model bolts measure between .379-.380″
• Laser Engraved Indicators for easier and more consistent tuning, and tiller adjustment
• Durable stainless steel construction
• Weight: 1.56 oz (44 g)
• Quantity: 2-pack

Fitment

• Available to Fit 2009 and Newer HOYT Risers
• Hoyt Model does not include a locking grub screw and may be purchased separately if needed (Item 2560668)
• Available to Fit Win & Win
• For A&B type risers that use M13x1.25 threaded tiller bolt, including but not limited to; INNO AXT, INNO AL1, Winex, Winact-VT, META DX, RADICAL PRO, ATF, ATF-X, ATF-DX, TFT, TFT-G, CX7 WINEX, CXT (With M13x1.25 Tiller Bolt)
• Win & Win model also fits Sebastien Flute NEO, EVO, ISO PRO, Ascent, and Newtron risers
• Win & Win model includes the collet locking set screw

Sizing:

• Measure the inside of your limb fork where the Tiller Bolt interfaces with the limb
• Using a set of calipers, ensuring the tool is perpendicular to the inside of the forks record a measurement to determine the tightest fit
• For measurements .3765″ and under order Model .375″ bolt
• For measurements .377″ and over order Model .380″ bolt

Note: does not fit the INNO Max, INNO CXT (with M12x1.25mm Tiller Bolt), RCX-100, Rapido, SF Forged Plus, SF Axiom+L, SF Axiom Plus Light, SF Axiom, and SF Premium Plus risers (these use C type bolts and use M12x1.25mm thread)
